For wholesale buyers, corporate ID programs, schools, hospitals, event organizers, and promotional merchandise distributors, the holder material, internal clearance, card capacity, slot design, lanyard attachment, and card orientation can all affect the final result.
At LOVECOLOUR, a custom PVC card, badge holder, and lanyard manufacturer in Guangzhou, China, we work with both standard CR80-compatible designs and larger custom-sized credentials. Our practical approach is to check the complete combination of card, holder, hole or slot, and attachment before bulk manufacturing.
This guide explains CR80 ID card dimensions, soft and rigid badge holder compatibility, popular event badge sizes, card thickness, punched holes, lanyard clips, and how to order complete badge holder and lanyard sets in bulk.
Quick answer: Choose a badge holder designed for an 85.60 × 53.98 mm CR80 card, then verify the actual internal dimensions, usable card thickness, opening direction, and attachment hole. Soft PVC sleeves generally require some clearance for easy insertion, while rigid holders may use a closer-fitting structure. If you need to carry two or three cards, use a holder specifically designed to accommodate the total thickness rather than assuming a standard single-card holder will work.
1. What Is the Standard CR80 ID Card Size?
CR80 is the commonly used credit-card-sized format for employee identification cards, access credentials, membership cards, and many types of plastic ID cards.
The commonly specified CR80 format corresponds to the ID-1 card dimensions defined by ISO/IEC 7810.
| Specification | CR80 Reference |
|---|---|
| Length | 85.60 mm |
| Height | 53.98 mm |
| Approximate inches | 3.370 × 2.125 inches |
| Common card thickness | 0.76 mm / 30 mil |
| Alternative custom thickness | 0.5 mm, 1.0 mm, or other specified options |
| Typical applications | Employee IDs, access cards, membership cards and selected event credentials |
Note: CR80 describes the card’s nominal length and height. When selecting a badge holder, buyers should also confirm the actual card thickness, corner shape, and any additional construction details. A custom 1 mm card may have the CR80 footprint without matching every aspect of a standard 0.76 mm card specification.
CR80 cards are widely used in office identification systems, company access programs, banking-related card formats, and many chip-card applications. The format is also frequently used for printed membership and visitor cards.
However, the physical CR80 dimensions do not determine whether a card contains an RFID chip, NFC technology, a contact chip, or any other electronic feature. Those requirements must be specified separately.
For available printing, thickness and hole-punching options, see our custom PVC ID cards and event badges.
2. Why Doesn’t Every CR80 Card Fit Every Badge Holder?
One of the most common mistakes in bulk badge holder purchasing is selecting a product based only on the phrase “CR80 compatible.”
A holder may be designed for the same nominal card length and height but still be unsuitable for a thicker card, multiple cards, a particular insertion method, or the selected lanyard attachment.

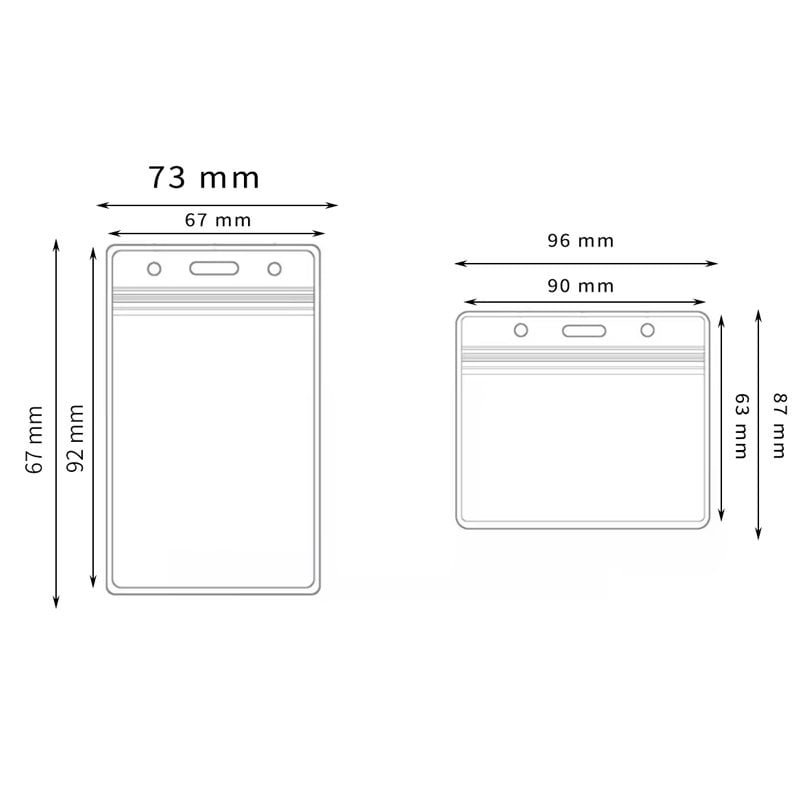

Internal Dimensions vs. External Dimensions
The outside dimensions of a badge holder are not the same as the usable internal dimensions.
For example, a rigid frame may measure considerably larger than the card because the frame includes a surrounding border, attachment structure and protective housing.
When sourcing holders, ask for the maximum supported card dimensions or the actual usable internal size, not just the holder’s overall outside measurement.

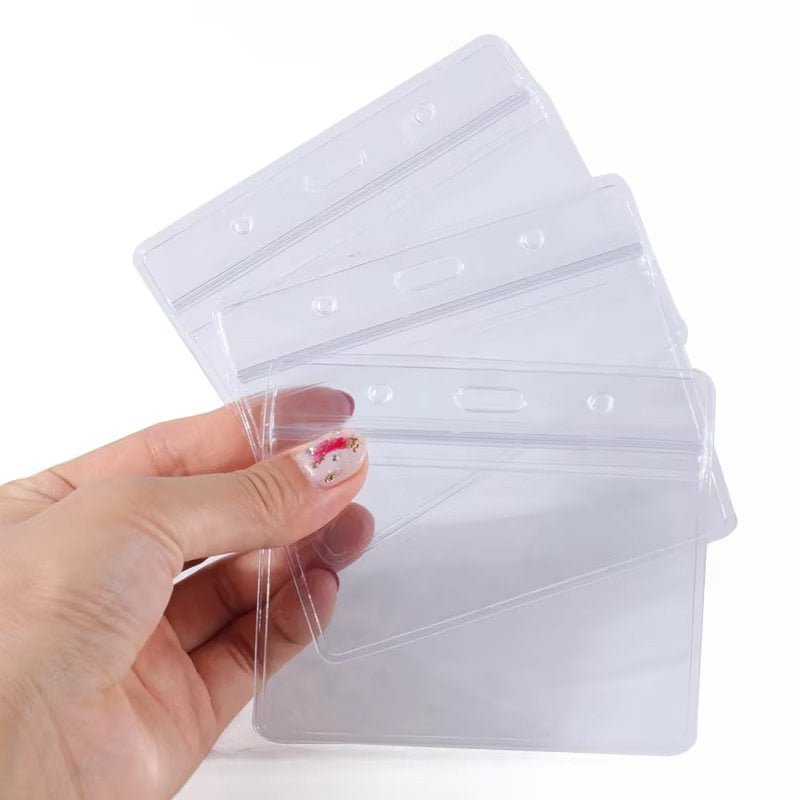

Clearance in Soft PVC Holders
Soft PVC badge holders are flexible and often use an envelope-style pocket with an opening for inserting the card.
In our custom soft PVC holder development, we commonly allow approximately 3–5 mm of additional fitting space relative to the card size, depending on the pocket construction and intended insertion method.
This helps make card insertion and removal more convenient.
Important: The 3–5 mm allowance is a practical manufacturing reference, not a universal dimension required on every edge or for every product. The correct pocket dimensions depend on the opening structure, weld seams, holder orientation, card thickness and number of cards.
For custom orders, the best approach is to approve a dimensioned drawing and test the finished sleeve with the actual card.

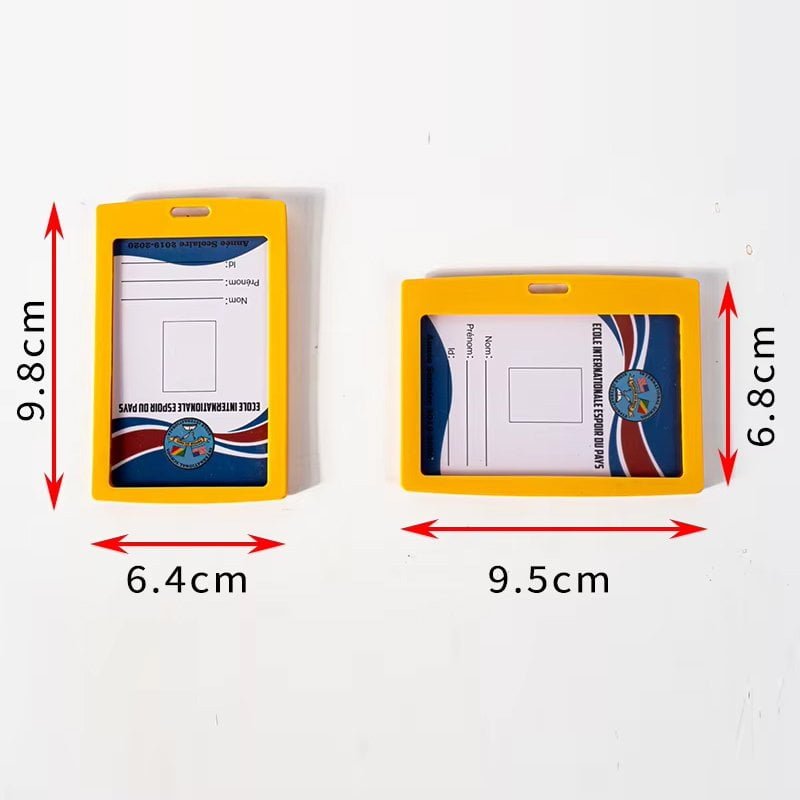

Rigid Holder Fit
Rigid plastic badge holders may use fitted frames, rails, sliding channels, retention tabs or other card-retention structures.
These designs can be less forgiving than soft sleeves if the card thickness or shape differs from the intended specification.
A card that fits into one rigid CR80 holder may be too tight for another, particularly if the design is intended for only one standard-thickness card.
3. Soft PVC vs. Rigid Badge Holders: Which Should You Choose?
Both soft and rigid badge holders can be suitable for wholesale corporate and event orders. The right choice depends on the required protection, card access, appearance, cost, and wearing conditions.
| Feature | Soft PVC Holder | Rigid Plastic Holder |
|---|---|---|
| Structure | Flexible sleeve or pocket | Firm molded frame or case |
| Card insertion | Often flexible, subject to pocket size | Depends on fitted opening and retention design |
| Card thickness tolerance | Depends on pocket depth and weld construction | May be more restricted |
| Protection | Flexible surface protection | Greater structural support in suitable designs |
| Customization | Pocket size, color panel, printing, shape | Molded form, frame color, logo and openings |
| Common uses | Conferences, visitors, office IDs and event passes | Employee cards, access cards and repeated daily use |
When to Choose Soft PVC Card Holders
Soft PVC sleeves are often suitable when customers need a lightweight and cost-conscious holder for printed cards or paper inserts.
They are frequently used for:
- Conferences and trade shows.
- Visitor identification programs.
- Exhibitor and staff badges.
- Corporate events and temporary credentials.
- Custom printed promotional badge sets.
For a real product example, see our custom soft PVC vertical ID badge holder.
When to Choose Rigid Plastic Card Holders
Rigid holders can be useful when the card is handled frequently or buyers prefer a more structured housing.
They are commonly considered for employee identification, school or institutional cards, and access-card programs.
However, buyers should pay particular attention to maximum card thickness and how the card is inserted or removed.
Explore our custom rigid plastic ID card holders for available configurations.
4. CR80 Card Thickness: Will 0.76 mm and 1 mm Cards Fit the Same Holder?
Not necessarily. Card thickness is a separate compatibility requirement from width and height.
A standard CR80 PVC card commonly has a nominal thickness of 0.76 mm, while custom cards may be made in thinner or thicker versions.
0.76 mm PVC Cards
This is a commonly selected thickness for employee ID cards, membership cards, access credentials and standard printed PVC cards.
Many CR80-compatible holders are designed around this thickness, but actual compatibility should still be checked against the manufacturer’s specification.
1.0 mm PVC Cards
A 1 mm card can provide a thicker, more substantial physical feel for certain custom projects.
However, it may not fit a rigid holder whose retention structure is designed for one 0.76 mm card.
Before ordering, ask whether the holder accepts a 1 mm card and test the finished combination when possible.
Can One Badge Holder Carry Two or Three Cards?
Yes, selected badge holders and soft PVC sleeves can be designed to carry more than one card.
In our practical manufacturing experience, customers sometimes request a single sleeve that can accommodate two or three cards.
For reference, two nominal 0.76 mm cards have a combined thickness of approximately 1.52 mm, while three total approximately 2.28 mm, before accounting for any extra material, spacing, warpage or insertion clearance.
That does not mean a standard single-card holder will accept them.
Manufacturer’s recommendation: If you plan to insert multiple cards into one holder, specify the number of cards and the actual thickness of each card during the inquiry. The pocket or holder must be designed for the total stack.
5. Horizontal vs. Vertical CR80 Badge Holders
CR80 cards can be used in either landscape or portrait orientation. The card’s physical size remains unchanged, but the artwork orientation, holder opening and lanyard attachment location differ.
Horizontal Badge Holders
Horizontal holders display the card with its longer side across the top and bottom.
They are often used for employee information, visitor passes, access cards and event designs requiring a landscape layout.
Vertical Badge Holders
Vertical holders display the card with its longer side running from top to bottom.
They are common for photo ID badges, staff credentials and corporate programs using a portrait layout.
What Should Buyers Check?
- Whether the card is printed horizontally or vertically.
- Whether the holder opening is at the top or side.
- Whether the card can be inserted and removed easily.
- Where the lanyard hook or clip connects.
- Whether the finished card hangs in the intended direction.
- Whether any badge reel or access-control reader can be used conveniently.
Buyers should not assume that rotating the card automatically makes every holder suitable for both orientations. The actual holder design must be considered.
6. Popular Badge Holder Sizes Beyond CR80 for Events and Exhibitions
CR80 is common for everyday identification, but many exhibitions, concerts, conferences, festivals and promotional events require larger credentials.
Large event badges can provide more space for:
- Attendee names and company information.
- Event branding and sponsor logos.
- QR codes and barcodes.
- VIP, STAFF, MEDIA or EXHIBITOR identification.
- Schedules, access zones or special instructions.
At LOVECOLOUR, our experience with custom ID cards and badge holders includes projects using the following larger dimensions:
| Example Card / Insert Size | Potential Application | Compatibility Note |
|---|---|---|
| 70 × 100 mm | Compact event credentials | Select a correctly sized pocket or holder |
| 85 × 125 mm | Conference badges | Check opening, clearance and hanging direction |
| 90 × 130 mm | Exhibitions and branded events | Review attachment position and finished height |
| 100 × 140 mm | Large event and identification passes | Confirm suitable holder construction and reinforcement |
| 180 × 120 mm | Oversized event credentials | Custom holder and attachment evaluation recommended |
These dimensions are examples from custom project experience, not a universal standard badge holder size chart. Buyers should clearly indicate whether each measurement refers to the card or paper insert, the usable pocket dimensions, or the finished outside size of the holder.
For large badges, the relationship between the card dimensions and the overall holder dimensions becomes even more important.
For example, an 85 × 125 mm printed insert may need a somewhat larger soft PVC pocket to allow easy insertion and accommodate the sealed edges.
However, the exact pocket allowance must be determined according to the finished construction.
Why Oversized Badges Are Popular at Events
Many event buyers deliberately choose larger credentials to display more information and make staff categories easier to recognize.
A larger pass may provide better visual space for branding, photographs, sponsor logos and event-specific content.
The correct size should be selected according to the information layout, badge weight, intended wearing time and required lanyard attachment.
See our custom exhibition badge lanyards and PVC cards for complete event identification combinations.
7. Badge Holder Slot Sizes, Round Holes and Lanyard Clip Compatibility
Even if a card fits its holder correctly, the final set may not work if the lanyard clip does not fit the holder’s attachment hole.
The attachment system should be checked as a complete assembly.
Single Slot Openings
Elongated slot openings are commonly used for badge clips, swivel hooks and selected lanyard attachments.
The slot must accommodate the actual connector dimensions and permit suitable movement without damaging the holder.
Round Holes
Round holes can be used with compatible metal rings, hooks, cords or other attachment components.
The hole diameter, distance from the edge, and material strength should be evaluated together.
Double Holes and Double-Hook Lanyards
Some wider event badges or horizontal card holders may use two attachment points.
A double-hook lanyard can help a suitable large badge hang in the intended orientation, but the spacing between the two holes must match the lanyard assembly.
Common Lanyard Attachment Options
| Attachment | Typical Use | Compatibility Check |
|---|---|---|
| Metal swivel hook | Employee ID cards and badge holders | Hook opening and slot dimensions |
| J-hook or lobster clasp | Event badges and accessories | Attachment opening and finished weight |
| Bulldog clip | Conference badges and certain holders | Clip jaw, slot compatibility and grip |
| Badge reel | Frequently scanned employee access cards | Connector type, extension and weight |
| Double hooks | Wide event credentials | Hole spacing and card orientation |
Factory recommendation: Provide a photo, dimensioned drawing or actual sample of the badge holder opening and the proposed clip. Do not assume that all lanyard hooks fit all slot designs.
For more information, read our lanyard attachments guide covering metal hooks, clips and buckles.
8. Can You Attach a PVC ID Card Directly to a Lanyard Without a Badge Holder?
Yes. Not every identification project requires a separate badge holder.
For suitable PVC ID cards or event badges, a punched slot or round hole can allow the card to connect directly to a lanyard or compatible clip.
This approach may be useful for exhibitions, corporate events, conferences and promotional programs where the printed card itself is designed as the finished credential.
Advantages of Direct-Punched Cards
- Eliminates a separate holder component.
- Can simplify the finished badge assembly.
- May reduce the number of components to purchase and pack.
- Allows full-color artwork directly on the PVC card.
- Provides flexible customization for event-specific designs.
What Should Be Checked Before Punching?
- Card thickness and material.
- Hole diameter or slot dimensions.
- Distance from the hole to the card edge.
- Compatibility with the selected metal hook or lanyard clip.
- Artwork and printed text near the punching area.
- Any internal chip, antenna or other electronic components.
Very important: Punching a card containing an RFID antenna, NFC module, contact chip or another embedded electronic element can damage its function if the punching area overlaps internal components.
For chip-enabled cards, the hole position must be reviewed against the actual electronic construction, and the supplier should verify that the selected design is suitable for punching.
Learn about our custom PVC ID cards with round-hole and slot-punching options.
9. Custom Badge Holder Sizes and New Mold Development
Not every project uses a standard card size. Event organizers, brand owners, promotional distributors and institutional buyers may require custom-shaped or oversized credentials.
At LOVECOLOUR, we offer a range of existing soft PVC and rigid badge holder configurations.
When an existing holder design does not fit the required card, we can evaluate custom dimensions and, where necessary, new mold development.
When Might a New Mold Be Needed?
- A unique finished holder shape.
- Unusual card dimensions.
- A special molded frame or retention structure.
- Nonstandard attachment-hole placement.
- Custom branding features or special construction.
Some soft sleeve designs may be developed using suitable cutting, sealing or tooling arrangements, while rigid molded designs may require dedicated tooling.
The actual process depends on the selected material and holder construction.
What Information Should You Provide?
- Card length, width and thickness.
- Number of cards to be carried.
- Preferred soft or rigid material.
- Horizontal or vertical orientation.
- Opening and card insertion method.
- Hole or slot position.
- Logo artwork, colors and finishing requirements.
- Order quantity and target delivery date.
Custom tooling may affect sample cost, minimum order quantity and production time. These commercial details should be confirmed during project review.
10. Bulk Buying Checklist: How to Match ID Cards, Badge Holders and Lanyards
For wholesale buyers, ordering the card, holder and lanyard together can make compatibility checks easier to coordinate, especially when all components are intended for one employee or event identification program.
Before mass production, we recommend checking the following specification table.
| Item | Required Check | Buyer Reference |
|---|---|---|
| ID card size | Length and width | Card specification |
| Card thickness | 0.76 mm, 1 mm or custom | Physical card sample |
| Holder internal size | Usable pocket or frame dimensions | Approved holder drawing |
| Card capacity | One, two or three cards | Actual card stack |
| Orientation | Landscape or portrait | Approved artwork |
| Holder opening | Insertion and removal access | Approved physical sample |
| Hole or slot | Size, position and strength | Technical drawing |
| Lanyard clip | Type and actual fit | Approved component sample |
| Packaging | Individual, bulk or complete set packing | Purchase order |
| Quantity | Matching quantities per component or kit | SKU and packing list |
Example: Ordering 5,000 Complete Employee Badge Sets
Consider a company that needs 5,000 employee identification sets. Each set includes one printed CR80 PVC card, one compatible badge holder and one custom lanyard.
The buyer should not order three separate components based only on descriptions such as “standard ID card” or “universal badge holder.”
Instead, the project specification should identify:
- The exact card dimensions and thickness.
- The holder’s supported card size and insertion method.
- The lanyard width, length and clip type.
- The required card and holder orientation.
- Artwork and any employee-specific printing data.
- Quantity allocation and packaging arrangement.
- The required delivery deadline.
A representative complete sample should be assembled and reviewed before bulk production.
This is an illustrative procurement example rather than a specific customer order or a claim of completed testing.
For compatible full-set solutions, explore our custom badge holders, badge reels and lanyard sets.
11. Common CR80 Badge Holder Compatibility Mistakes
Mistake 1: Confusing Outside Holder Size with Usable Card Size
Always confirm the intended card dimensions or internal pocket measurements.
Mistake 2: Ignoring Card Thickness
A 1 mm card may not fit a rigid holder designed for a standard 0.76 mm card.
Mistake 3: Assuming a Single-Card Holder Fits Three Cards
Multiple cards require suitable internal capacity and an approved construction.
Mistake 4: Using the Wrong Orientation
A horizontal credential and a vertical holder may create a poor finished presentation or incompatible hanging arrangement.
Mistake 5: Choosing the Clip Without Checking the Holder Hole
The clip and hole must be compatible in both dimensions and function.
Mistake 6: Punching Chip Cards Without Checking Internal Components
Card punching may damage embedded electronic elements if the hole position is unsuitable.
Mistake 7: Skipping the Complete Assembly Sample
When buying cards, holders and lanyards together, the assembled combination should be evaluated rather than inspecting each component in isolation.
12. Frequently Asked Questions About CR80 Badge Holders
What size is a CR80 ID card?
A standard CR80 card has nominal dimensions of 85.60 × 53.98 mm (approximately 3.370 × 2.125 inches). A common nominal thickness is 0.76 mm, although custom cards may have different thickness specifications.
Is CR80 the same size as a credit card?
CR80 refers to the familiar credit-card-sized ID-1 footprint used by many bank, identification and access cards. However, cards with the same physical dimensions may have different thicknesses, technologies and functional specifications.
What size badge holder fits a CR80 card?
Choose a holder explicitly designed to accept a card measuring 85.60 × 53.98 mm. Check its actual internal capacity and supported thickness rather than relying only on the holder’s external dimensions.
How much larger should a soft PVC holder be than the card?
LOVECOLOUR often considers approximately 3–5 mm of additional fitting allowance when developing certain soft PVC sleeves, depending on the construction and opening. This is not a fixed per-side standard; final dimensions should be confirmed by drawing and sample.
Can a 1 mm PVC card fit a CR80 holder?
Sometimes, but not always. A 1 mm card may fit a suitable flexible sleeve or a rigid holder designed for that thickness. Single-card rigid holders intended for 0.76 mm cards may be too tight.
Can a badge holder fit two or three cards?
Yes, selected soft PVC sleeves and multi-card holder designs can accommodate multiple cards. Buyers should confirm the number of cards and their combined thickness before ordering.
Are horizontal and vertical CR80 holders interchangeable?
Not necessarily. Orientation affects the opening, attachment point, card display and hanging direction. Choose the holder configuration that matches the intended use.
What is the best card holder for a trade show?
Many trade shows use lightweight soft PVC badge sleeves, especially when paper inserts or larger printed credentials are involved. Rigid holders may be preferable where greater structural protection is required. The final selection depends on badge size and intended use.
Can I order custom oversized badge holders?
Yes. LOVECOLOUR supports various existing holder sizes and can review custom soft PVC and rigid holder dimensions. New tooling or mold development may be needed for certain special designs.
Do I need a card holder if my PVC ID card has a punched hole?
Not necessarily. Suitable PVC cards can be punched and attached directly to compatible lanyards. The punching location must be appropriate for the card construction, particularly if electronic chips or antennas are embedded.
What lanyard clip should I use with a badge holder?
Common options include swivel hooks, J-hooks, lobster clasps, bulldog clips and badge reels. The best choice depends on the holder opening, card weight, access requirements and intended application.
Can I buy custom ID cards, badge holders and lanyards together?
Yes. LOVECOLOUR supports coordinated OEM/ODM projects involving printed PVC cards, soft or rigid holders, badge reels and custom lanyards, with packaging arrangements based on the buyer’s requirements.
13. Request a Wholesale Quote for Custom Badge Holders, ID Cards and Lanyards
Need a reliable custom badge holder manufacturer for your next employee identification program, conference, exhibition or promotional project?
LOVECOLOUR is a Guangzhou-based OEM/ODM manufacturer supporting custom PVC ID cards, soft PVC badge holders, rigid plastic card holders, lanyards and related identification accessories.
We can review your required card dimensions, material, thickness, holder style, clip compatibility, artwork and packaging requirements to recommend a suitable manufacturing solution.
For an accurate quotation, please send:
- Card dimensions and thickness.
- Number of cards per holder.
- Soft PVC or rigid holder preference.
- Horizontal or vertical orientation.
- Hole or slot requirements.
- Lanyard or badge reel attachment style.
- Artwork, quantity and packaging requirements.
- Shipping destination and required delivery date.
Contact LOVECOLOUR to request a custom badge holder and lanyard quotation.
Related products: Custom PVC ID Cards | Badge Holders & Badge Reels | Exhibition Badge Lanyards & PVC Cards.
